Wheel Stand MOD

Although the wheel stands include a set of “wings” that prevent a vehicle from rolling off the front or back of the stands there is nothing to stop the car from moving side to side. Since I plan to use “slip plates” under the wheels for some tasks I decided to fabricate a set of guards to “capture” the wheels on top of the stands.

First a simple layout of the bits and pieces necessary…

img_5442(2)

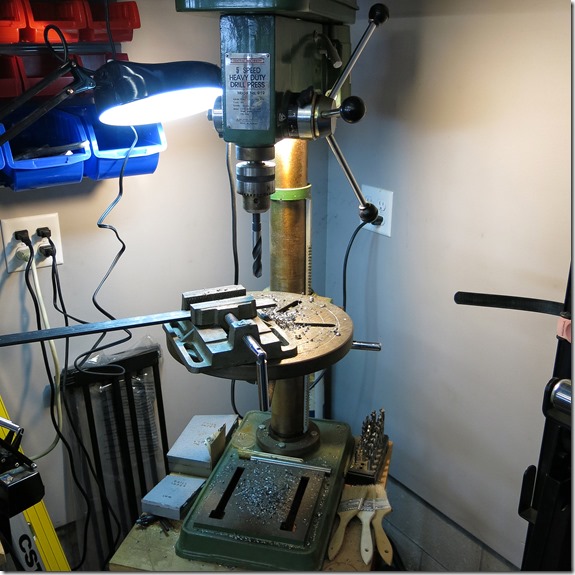

Then on to drilling holes in the straps…

img_5455(2)

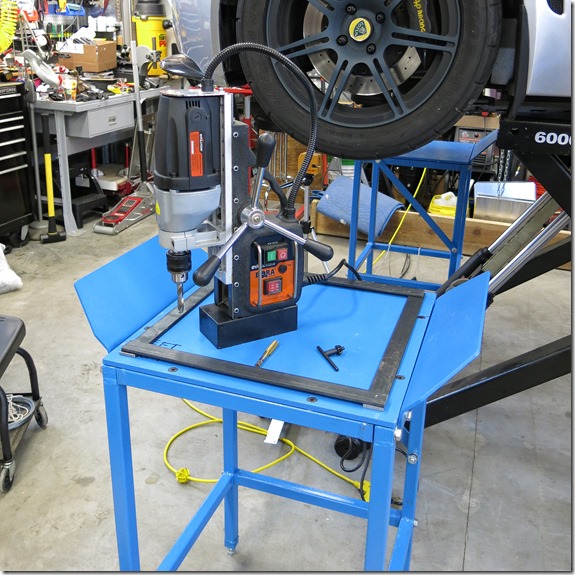

Drilling and tapping the wheel stands…

drill tap

And finally the finished guards…

img_5452(2)
